Topology window

ENP Topology panel is the main window of the GUI. Its main role is providing a user-configurable visualization of the network, in give access to other main functionalities.

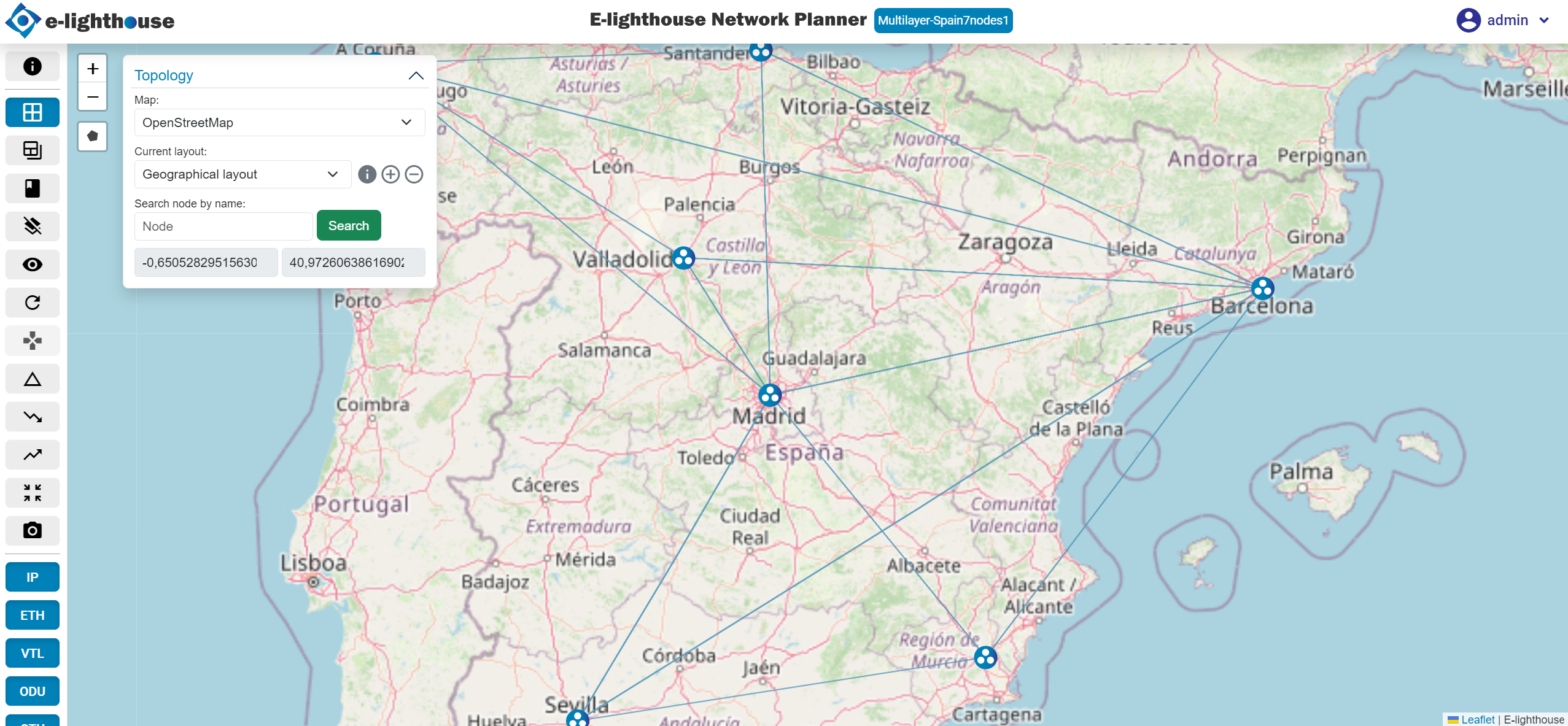

As shown in the figure the Topology panel includes button bars and other information that will be described in the following sections:

Canvas

The topology canvas displays the network nodes and links in a graphical form, and gives graphical access to several options.

This panel permits a graphical visualization of the network nodes and links between them, with the following characteristics:

Map / clear view

In the map view, the node positions are shown as in the canvas located in a geographical map.

In contrast, in the clear view, the network nodes are plotted over an empty background.

The user can activate and deactivate the map view by choosing the corresponding option from the "Current layout" selector found in Topology panel.

Layout view

A network layout is an arrangement of the nodes in (X,Y) positions in the canvas. The canvas on the topology panel displays the currently active layout for the network topology design.

Geographical layout. In any ENP design, the so-called geographical layout displays each node in a coordinate associated to its longitude and latitude.

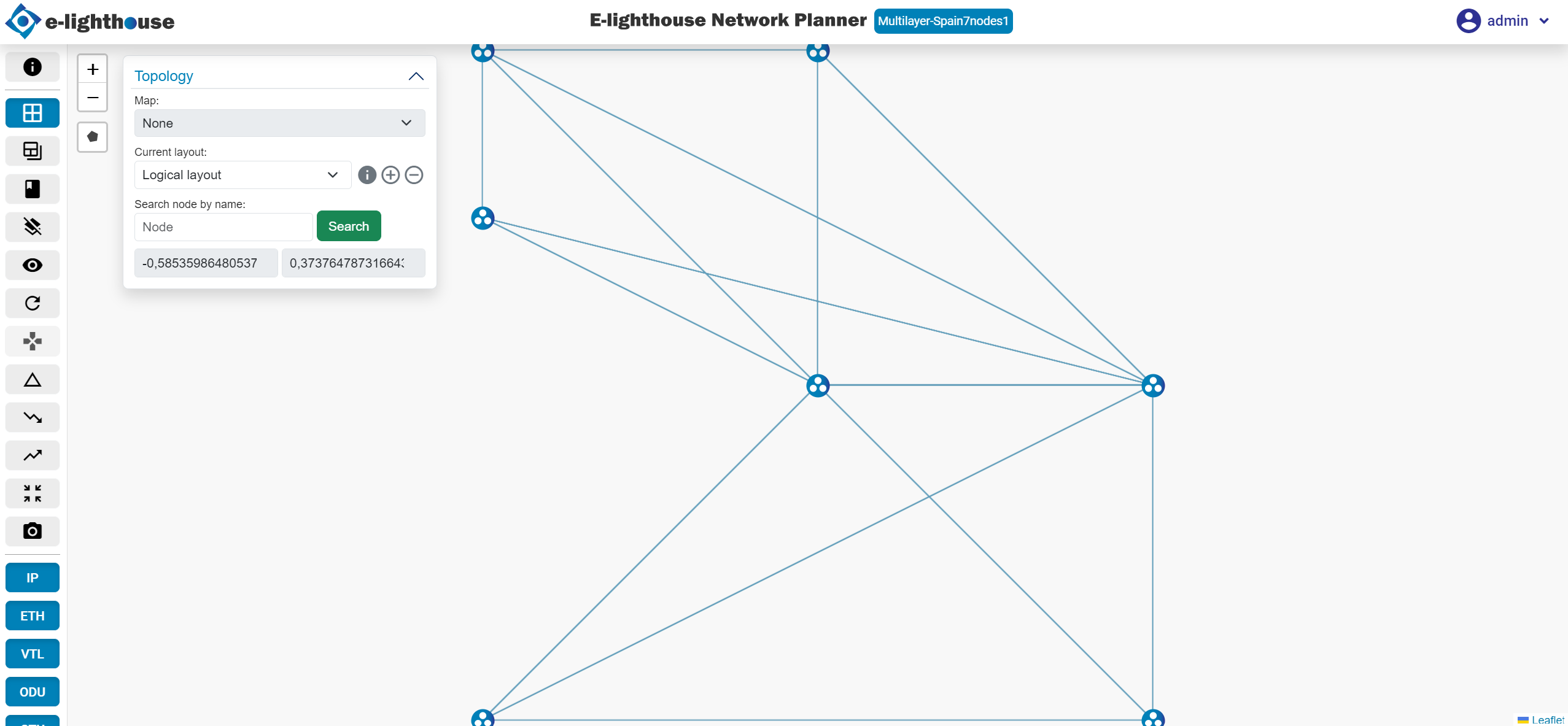

User-defined layouts (Logical layout). Additionally, the user can create as many other layouts as he/she wishes, as described in Topology panel. Layouts are typically used to plot the nodes in positions that reflect their logical relations, or that simply permit a clearer view of the topology.

The following table describes the buttons in the toolbar on the left side of the screen:

Icon	Description
	Information section. Click to view the tool's help section. This is where the help tour can be activated.
	Control Window. Click to open or close the new tab where the Control Window is displayed.
	File system. Click to open the modal where all the designs are listed. In this modal you can choose the design you want to work with.
	Dashboards. Click to open a mode where you choose the type of dashboard you want to open in a new tab.
	Click to remove the current layout.
	Click to hide or show the Topology panel displayed at the top left above the map/canvas.
	Refresh option. Click to refresh the current layout.
	Network Controller. Click to display the network controller section.
	Delta analysis. Launch the delta analysis over the current network design. Results will be accesible in different parts of the Control Window.
	Show downlayer traffic propagation. Shows the links in lower layers that carry traffic of the picked element. Show uplayer traffic propagation. Shows the links in upper layers that provide traffic traversing the picked element.
	Click to focus on the design with all its nodes and links.
	Click to take a screenshot of the current design.
	Click to show/hide the different types of links: IP links. Ethernet links (ETH). Virtual transport links (VTL). Optical Data Unit (ODU). Optical Transport Unit (OTU). Wavelength Division Multiplexing (WDM). And Optical Transport System (OTS).
	Link coloring. Displays links with their respective colors based on utilization value.
	Node rendering algorithm. Runs an algorithm to order the nodes of a non-geographic layout based on their links.
	Click to show or hide the node name.
	Click to show or hide the use of each link.
	Group node aggregations. Expand node aggregations.
	Click to show or hide the total number of links on each path between the nodes.
	Show/hide non-connected nodes. This toggle button allows to show or hide the nodes of the topology that have no links that are visible.
	Options to resize nodes.
	Options to make the width of the links thicker or thinner.
	Options to make the font size displayed on the canvas larger or smaller.

Topology panel

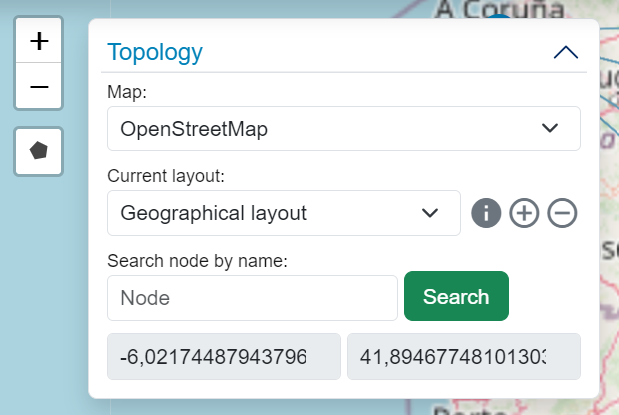

Below is the Topology panel, where you can do the following:

Change map type, which are: openStreetMap; dark; none; or satellite.
Change, view data, add or delete layout.
Do a search by the name of a node.
And display the longitude and latitude of where the mouse is at all times.

On the other hand, outside the panel, on the left side (between the toolbar and the panel), there are the following functionalities:

Zoom in on the layout.
Create a polygon and then be able to work with it through the layout.

The following is shown in the top menu (starting from the left):

On the left side the E-lighthouse logo is shown.
In the center the name of the tool (E-lighthouse Network Planner) along with the name of the current design.

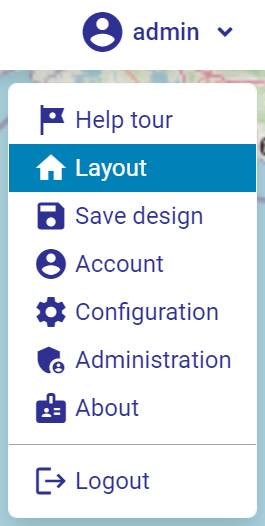

And on the right side the submenu is displayed, where you can do the following:
- Run the help tour, where the sections of the screen and their main functions are explained to the user.
- Go to Layout.
- Save changes made to the current design to the database.
- Go to the Configuration section.
- Go to the Administration section, a section that is enabled if you are an admin user.
- Go to personal profile.
- And log out.

Key shortcuts

The following actions can be performed onto the active layout on the canvas:

Control window. To open this section, you can select the layout button or click on the C key and then on the W key (C + W).
Historial of the picked elements. After picking multiple items, you can undo or redo your changes as follows: press Alt + Left Arrow to undo; and Alt + Right Arrow to redo.
